Drive-in Racking
Drive-in racking is ideal for facilities that store large amounts of the same items.
You can store up to 75% more pallets than with conventional pallet racking and your overall square metreage needs can be reduced by up to 35%.
Each loading aisle has support rails on both sides. These are arranged on different levels and the pallets are placed on top.
You can store up to 75% more pallets than with conventional pallet racking and your overall square metreage needs can be reduced by up to 35%.
Drive-in Racking Systems

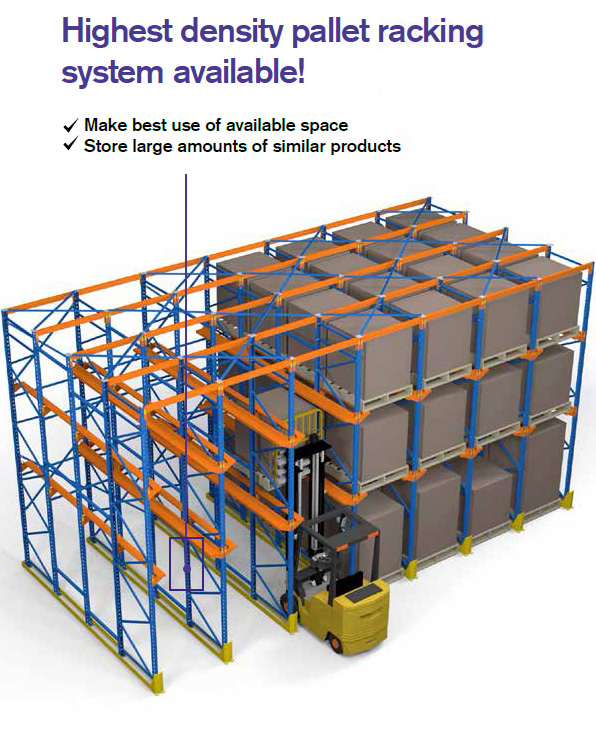

Drive-in racking is made up of a set of racking units that form inner loading aisles that have support rails for the pallet loads to rest on. The forklifts enter these inner aisles with their loads held higher than the level at which it is to be deposited.Each loading aisle has support rails on both sides. These are arranged on different levels and the pallets are placed on top.
H E A V Y D U T Y
Advantages:
Ideal Solution For :
- Highest density pallet racking system available
- Makes best use of available surface and height space than any
- Allows for load flexibility in regards to both weight and volume
Ideal Solution For :
- Large amounts of similar product
- Limited space
- Product loads which cannot be stored in block stacks
- Bulk palletised storage
- Warehouse
- Logistics
- Freight Forwarder
Size Chart
| Unit Heights | Widths | Depths |
|---|---|---|
| 3658, 4267, 4877, 6096, 6706mm ex stock |
Suit Standard 1165x1165mm Pallets |
Ex Stock Rail Depths- – 2 deep – 3 deep – 4 deep – 5 deep can be configured to the depth required |
If you have large amounts of similar product and limited space then drive-in racking is your best storage option.
